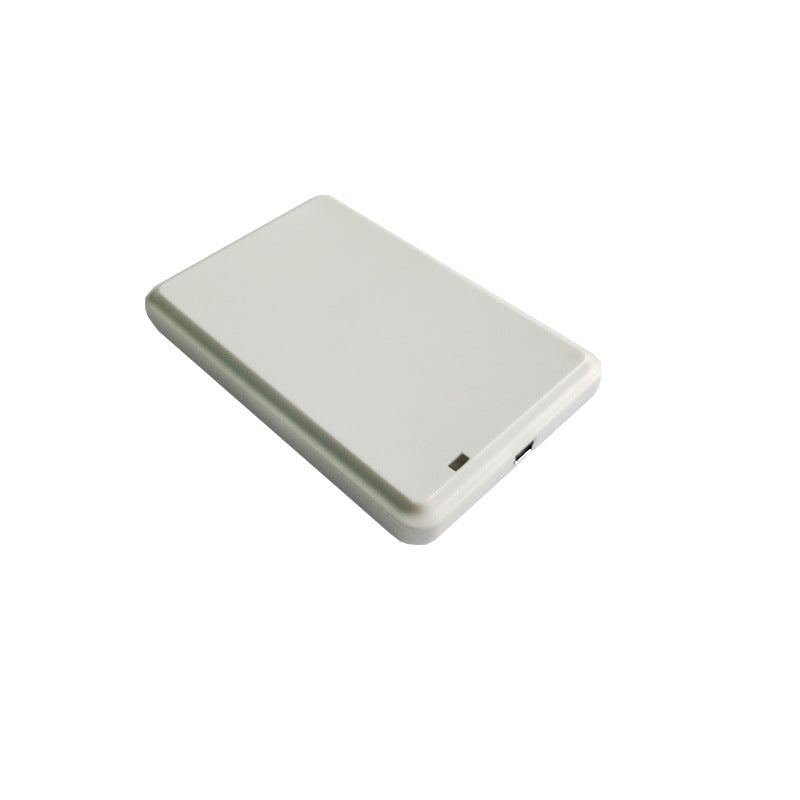

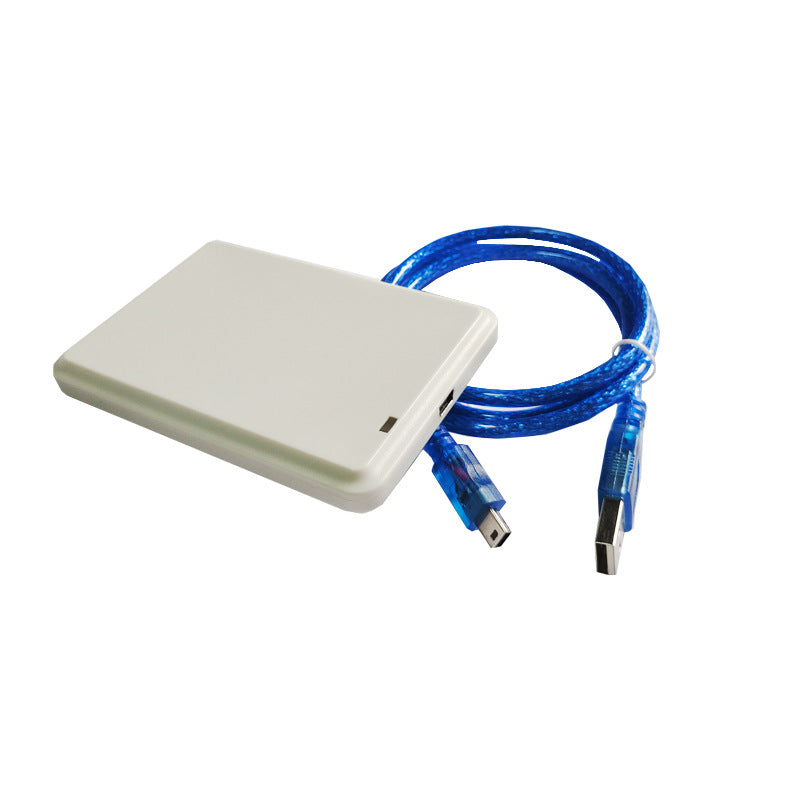

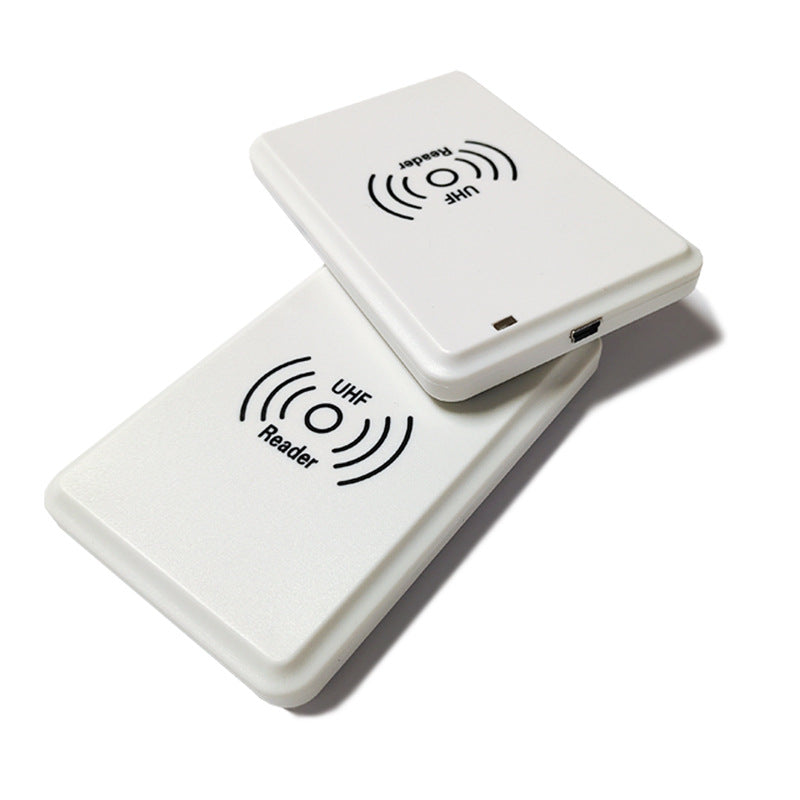

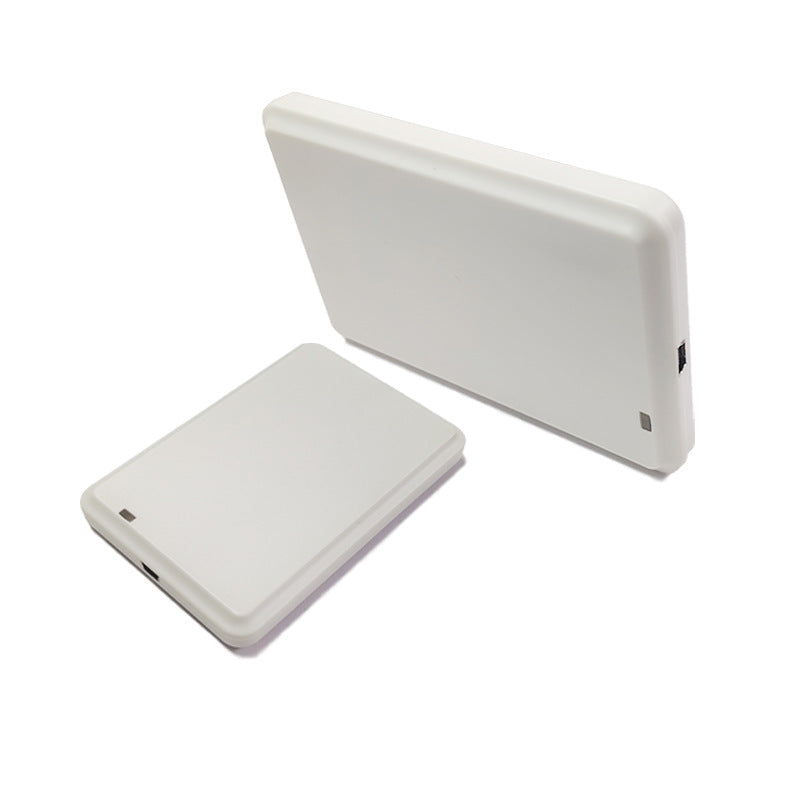

RFID UHF UHF desktop card issuer, drive-free can identify EPC/TID area at the same time, and can write cards in batches
RFID UHF UHF desktop card issuer, drive-free can identify EPC/TID area at the same time, and can write cards in batches
name: UHFUHF desktop reader
Model: SW1900
size: 105x 70 x 12mm
brief introduction:
SW1900It is a high-performanceUHFfrequency bandISO18000-6C(EPC C1G2Protocol electronic tag reader, independent intellectual property design, combined with proprietary high-efficiency electronic tag collision processing algorithm, while maintaining a high reading rate, to achieve fast reading and writing processing of electronic tags, can be widely used in logistics, personal identification, intelligent parking lot, access control system, anti-counterfeiting system and production process control and other radio frequency identification (RFID).RFIDThe system.
application scenario:
♦Card issuance management
Product features:
1. Design with independent intellectual property rights;
2. Full support for complianceUHF EPC Gen2 (ISO18000-6C) protocol electronic label;
3. operating frequencyFCC 902~ 928MHz, CE 865~ 868MHz (can be adjusted by software according to the requirements of different countries or regions)
4. frequency hopping(FHSS) or fixed-frequency transmission mode;
5. output power: maximum17dBm (adjustable);
6. Built-in 1dBi antenna, card reading distance range 0~ 30cm *;
7. Support active mode, command mode, password mode;
8. supportUSB2.0 HIDInterface and virtual keyboard output, (can be customized as a virtual serial port)VSP);
9. Support ASCII read and write;
10. Support excel table import and batch card writing
* The effective distance is related to protocol format, external antenna, electronic tag and working environment.
Product model explanation:
Model |
interface |
SW1900 |
Standard Edition (USB HID & KEYBOARD) |
SW1900S |
USB VSP (virtual serial port) |
-S USB virtual serial port |
electrical characteristics:
limit parameter
project |
symbol |
numerical value |
unit |
power supply voltage |
VCC |
5 |
V |
operating temperature |
TOPR |
-20~+60 |
℃ |
storetemperature |
TSTR |
-40~+85 |
℃ |
Specifications
Unless otherwise specified, the specifications shown are taken fromTA=25 ℃ and VCC =+ 5V working conditions
project |
symbol |
minimum |
typical |
maximum |
unit |
power supply voltage |
VCC |
|
5 |
|
V |
Working current |
IC |
|
200 |
300 |
mA |
operating frequency |
FREQ |
865 |
|
928 |
MHz |
product parameters
type |
|
Model |
SW1900 |
name |
UHF UHF desktop reader |
physical parameters |
|
external dimensions |
105 x 70 x 12mm |
weight |
50g |
Packaging weight |
0.3Kg |
Package size |
15*10*4cm |
shell material |
ABS |
Device color |
White |
environmental parameters |
|
operating temperature |
-20~+60℃ |
Storage temperature |
-40~+85℃ |
working humidity |
5%~95% RH, Non-condensing |
performance parameter |
|
operating frequency |
902~ 928MHz, 860~ 868MHz (software adjustable) |
Antenna Specifications |
1dBi antenna |
output power |
0 - 17dBm |
Reading distance * |
0-30cm *The effective distance is related to the protocol format, external antenna, electronic tag and working environment |
Write card distance * |
0-10cm *The effective distance is related to the protocol format, external antenna, electronic tag and working environment |
Card reading speed |
200time/1 seconds |
Read-write card type |
ISO18000-6C (EPC Gen2)/(can be customized as national standard *) |
Card reading prompt |
Buzzer.LED |
working voltage |
USB, 200mA |
working mode |
Active mode, command mode, password mode |
Other card reading functions |
Support ASCII read and write * |
Other card writing functions |
supportExcel table import,Batch card writing* |
communication interface |
SW1900: USB (USB HID & Virtual Keyboard) SW1900S: USB VSP (virtual serial port) |
SDKdevelopment kit |
|
SDK development kit |
Support X86 & X64, C++, C #, VB, Delphi, Linux, ARM, Python, NodeJS, QT, Java, Android and other languages. |
