Regular price $4.64
Regular price $0.00 Sale price $4.64
Sale Sold out

995 in stock

Weight: 0.185 kg | Air Shipping Cost: $1.80375

Freight is calculated based on 9.75/kg

Model

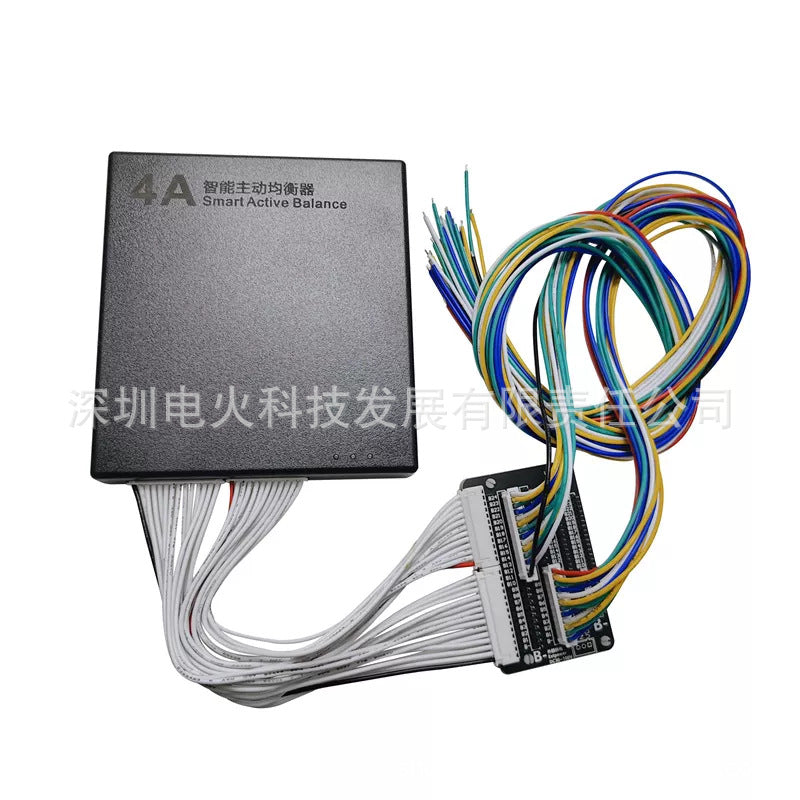

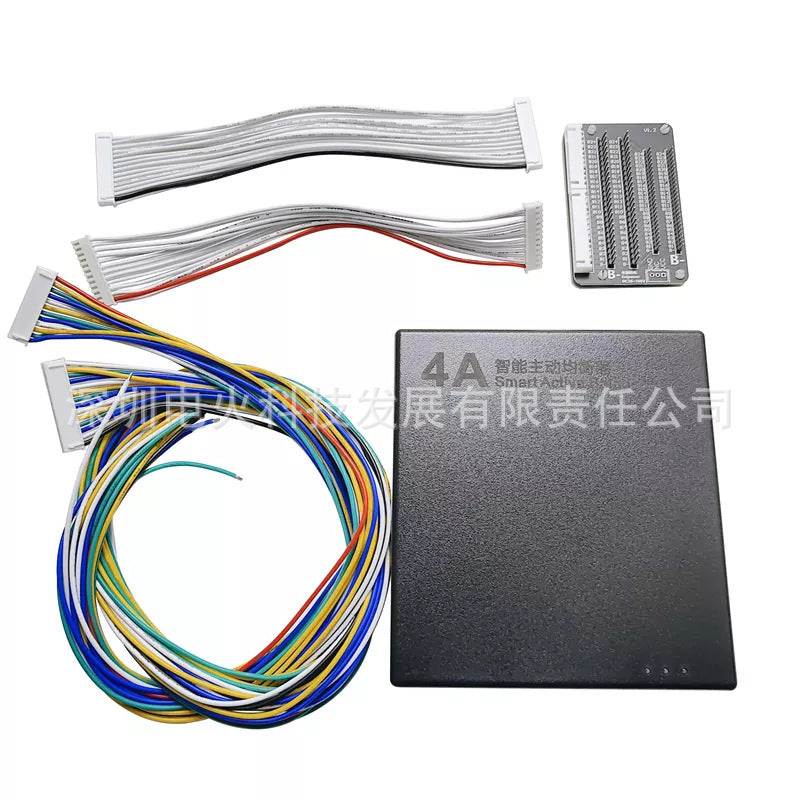

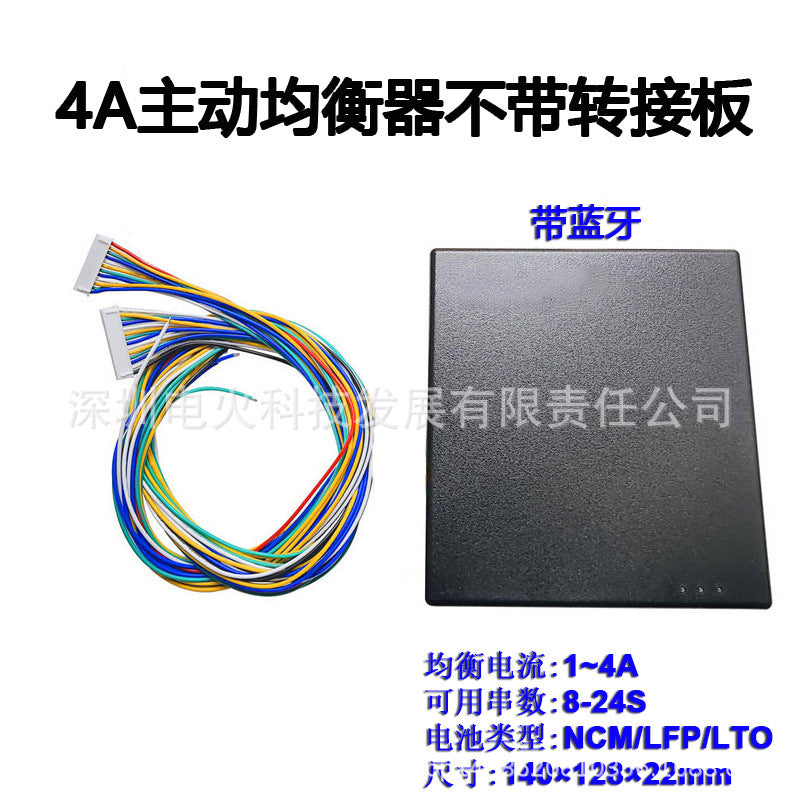

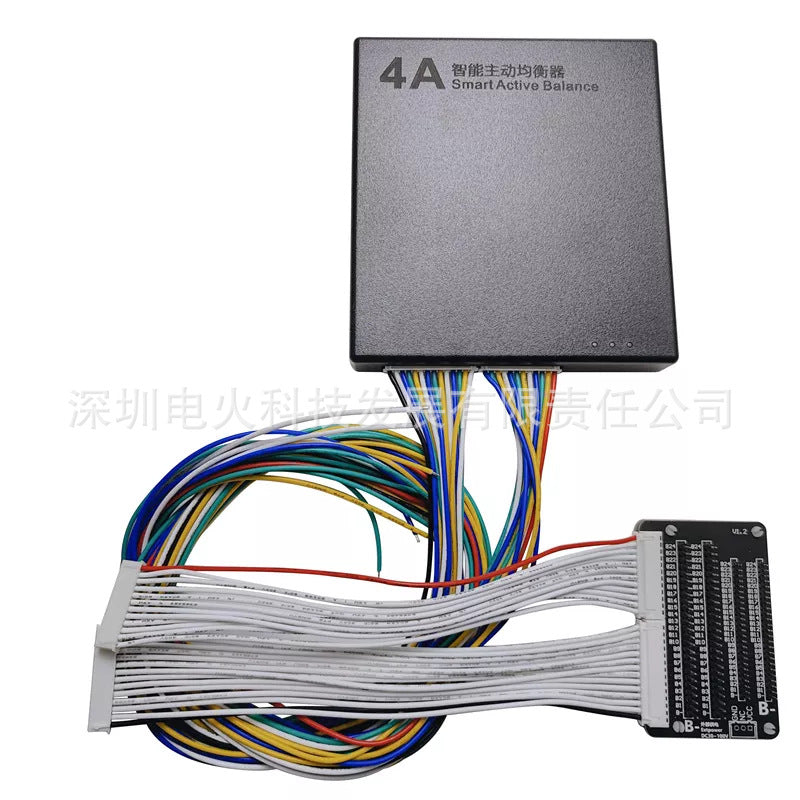

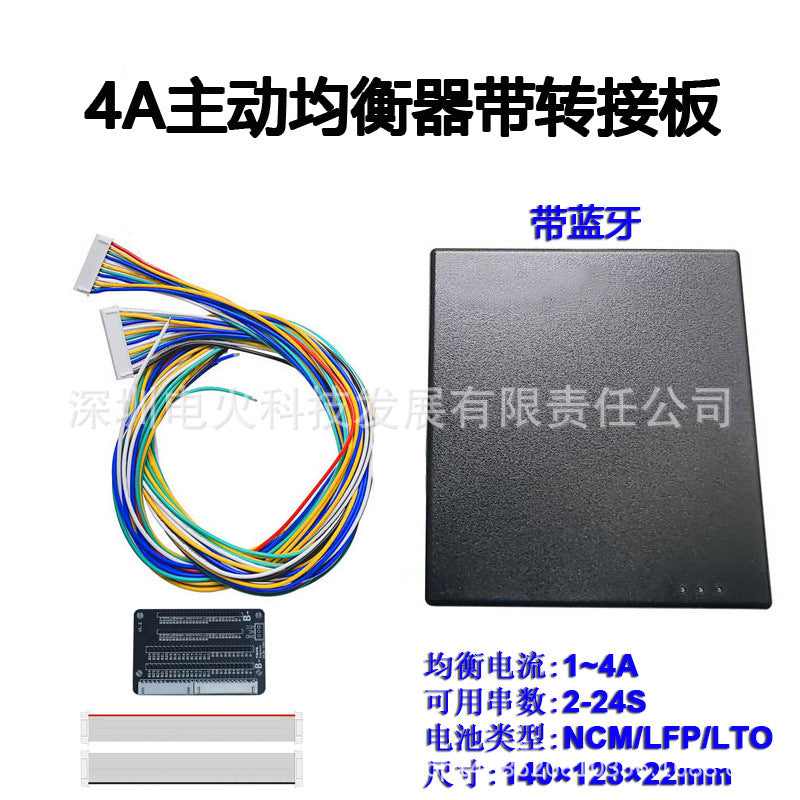

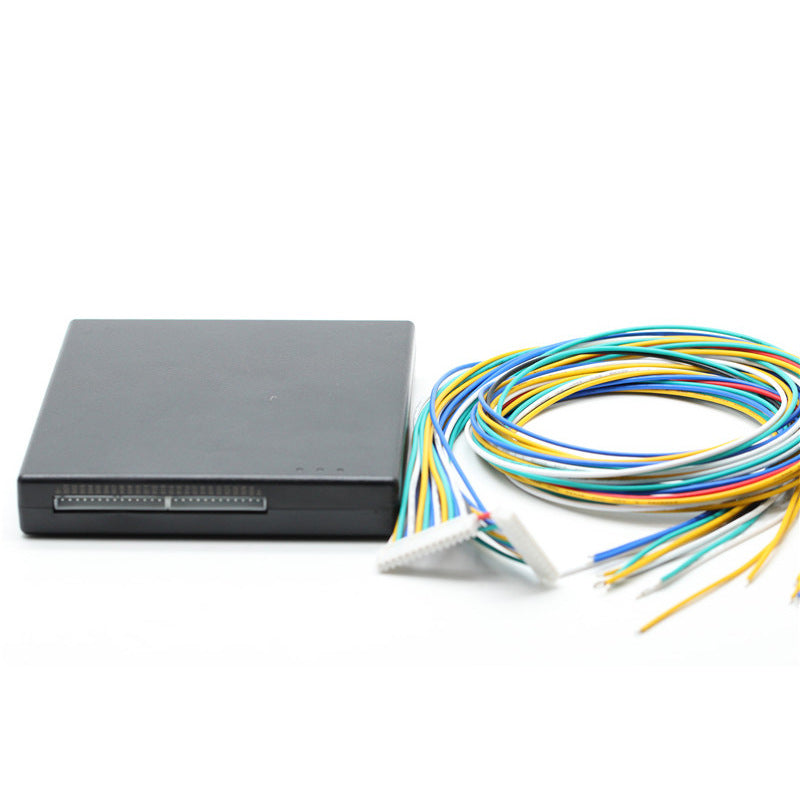

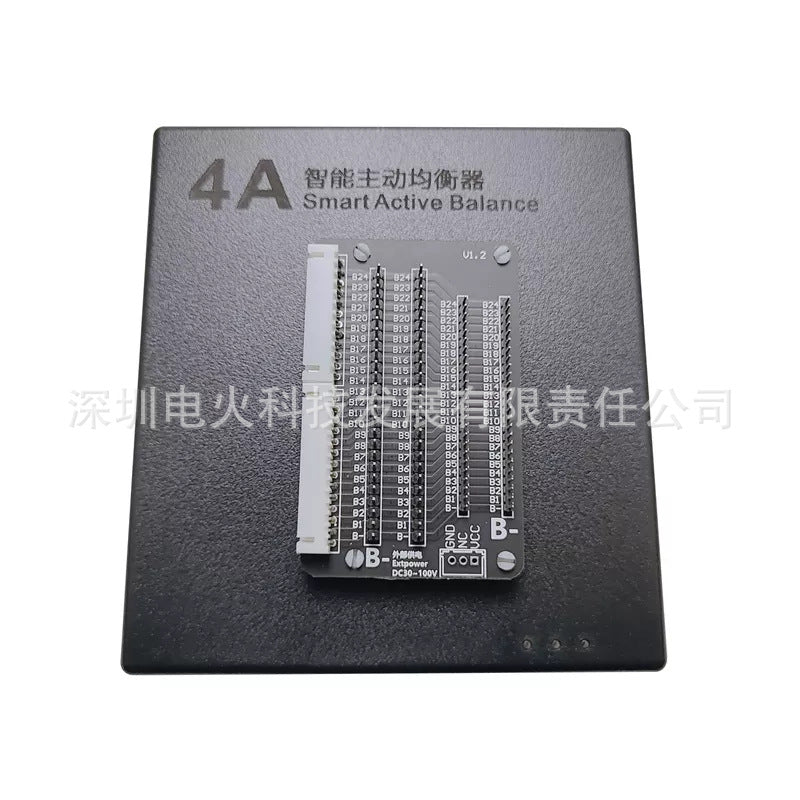

A 4A smart active balancer

A 4A smart active balancer



Applicable Series: 2-24 series
Compatible Battery Types: NCM/LFP/LTO (Nickel Cobalt Manganese / Lithium Iron Phosphate / Lithium Titanate) – Fully Compatible

Applicable Series for Power Supply Range:
The total minimum voltage of the battery pack should be greater than 30V. Recommended values:

  • NCM Batteries: ≥10 series

  • LFP Batteries: ≥12 series

  • LTO Batteries: ≥20 series

Single Cell Voltage Working Range: 1.0V ~ 4.5V

Voltage Balancing Accuracy:

  • Voltage measurement accuracy: ±1mV

  • Voltage balancing accuracy: ±1mV
    This product is calibrated by Keithley DMM7510

Balancing Method:
Patent balancing architecture using a flying capacitor method, combined with point-to-point energy transfer algorithm for high-efficiency balancing.

Balancing Current:
APP customizable settings: 1-4A
Due to the use of constant current and constant voltage technology, the balancing current is independent of the battery voltage difference.

Offline Detection:
Supports offline detection.

Undervoltage Protection Sleep Voltage:
Undervoltage sleep voltage can be customized in the APP: 1.5V-4.2V

Static Working Current:

  • Balancing off: 10mA

  • Balancing on: 25mA

Product Dimensions (mm): L140 x W128 x T22

Product Weight Including Packaging: 470g

Operating Temperature: Operating environment temperature (specific range not provided).

External Power Supply Required:
No external power supply required. The balancing is achieved through internal energy transfer from the battery pack itself.
